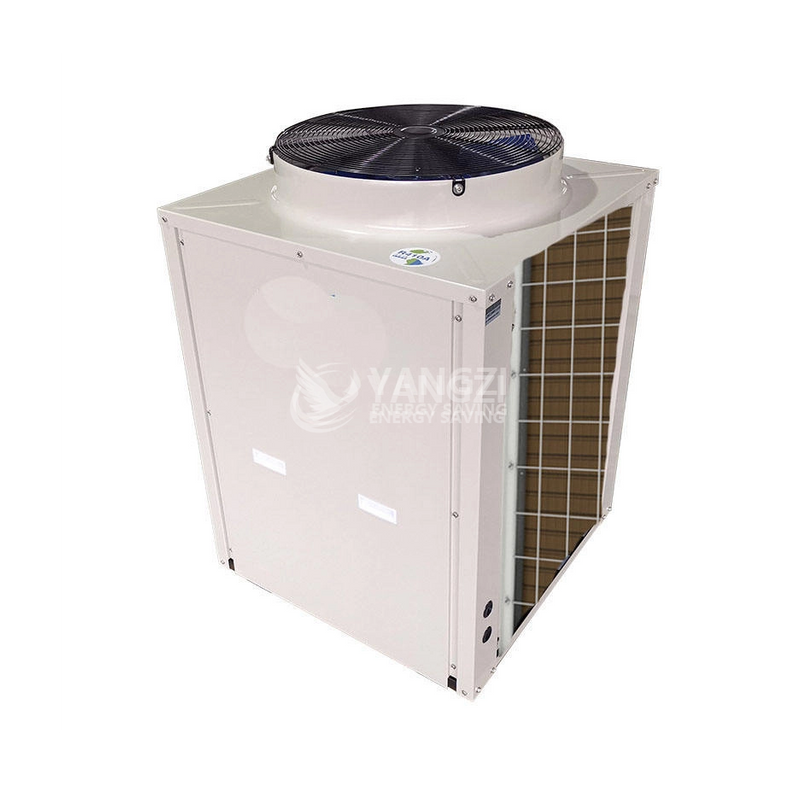

High Quality Yangzi YZRS-30GS Commercial Outdoor Air Source Water Heater Heat Pump Electric Power Stainless Steel Housing

Electric Heat Pump Heater Air Source Heat Pump Water Heater for Heating and Cooling

Factory Wholesale Electric Stainless Steel Outdoor Air Heat Pump for Pool Water Sports Heating Commercial Use Energy-Saving

High Quality Yangzi YZRS-30GS Commercial Outdoor Air Source Water Heater Heat Pump Electric Power Stainless Steel Housing

$ 12257

5 0 Reviews


color:	White
Voltage (V):	110-120V 220-240V
SKU:
Availability:

Quantity:
min order: 1

View wholesale prices View wholesale prices Quantity Price ≥1 $0 ≥100 $-100 ≥1000 $-200 sign in to view wholesale price

Buy Now Add to Cart

Inquire Add to Basket

PDF Export

^{Shipping fee and delivery date to be negotiated.}

Chat with supplier now for more details.

Product Description

Key attributes

OEM / ODM

Corporate Brochure

Products Description

Modular Air Cooled Heat Pump for Commercial Air Conditioning Units

Modular air-cooled heat pump unit, with multiple standards module unit at the scene of the installation together quickly and easily, centrally controlled by microcomputer, the unit according to the change of the air conditioning load, automatically adjust the number of compressor in operation, the output of generating units at any time to the highest efficiency in the best of cooperation. Even at low load output will not reduce the operating efficiency. Each refrigeration loop and each module run in an orderly manner independently of each other under the control of a computer controller. In case of failure of any circuit, it can be replaced by other circuits to maintain and repair the fault part while keeping the unit running.

The unit adopts unique defrost control technology, which can completely defrost in the most adverse climate environment and maintain good heating performance. Winter temperatures are relatively low and no boiler or other heating conditions are particularly suitable.

Advantages:

1. Convenient combination of activities and installation.

2. Stable quality and reliable performance. 3. Intelligent control, high efficiency and energy saving. 4. Quiet, comfortable and easy to maintain.

Hd1ada6ecc74e465f831de424b361689fD

Rated water temperature (℃)	50
Maximum water temperature (℃)	60
Exhaust side working pressure (MPa)	≤2.8MPa
Suction side working pressure (MPa)	≤0.7MPa
Refrigerant name	R22
Type of protection against electric shock	Class I
Waterproof class	IPX4
Use the ambient temperature zone	-7℃-43℃

H19c5a3396bd544128c0aad9cf83aaafac H3dfa336a1c7f41e3a080a491d7796072X H5d150f4769174d6eb9b88599a6ffeacca

H54351ce946ee48d9be78e2192c89c1543

Hf2025bebb7e044d8950f887f6cb6305dJ (1)

Key attributes

type

Air Source Heat Pump

Heating capacity

108kw

energy efficiency rating

Class I/IPX4

application

Commercial

Refrigerant

R22

Storage / Tankless

Other

compressor

other

installation

Freestanding

app-controlled

Yes

housing material

Stainless Steel

Feature

Eco-Friendly, Easy Installation, Easy Operation, Energy-Saving

power source

Electric

warranty

1 Year

after-sales service provided

Free Spare Parts

operating language

English

private mold

Yes

packaging types

Corrugated Box

Brand

Yangzi

model number

YZRS-30GS

place of origin

Guangxi, China

Rated heat production (kW)

108

Input power (kW)

24.3

Rated current (A)

43.5

Water yield (L/h)

2320

Maximum input power (KW)

39.4

Maximum input current (A)

70.6

Main machine net weight (Kg)

870

Running noise dB(A)

Overall dimensions (mm)

2000*1100*1870

Water circulation flow

Packaging and delivery

Selling Units

Single item

Requirement Communication and Solution Confirmation

1. Demand Import: You only need to specify the target market and application scenario. Based on local voltage, climate conditions, and energy efficiency standards, we recommend a matching EVI DC inverter platform or a 80°C high-temperature dedicated model.
2 Technical Confirmation: Both parties finalize customization details—sheet metal color, silk-screened logo, control panel UI, and wire controller language. Engineers provide 3D drawings and BOM lists, locking in compressor brand and heat exchanger material.
sample prototyping

1. Precision Sampling: Procure custom components, organize dedicated assembly teams for specialized production, and strictly adhere to the design specifications from drawings.
2. Extreme Verification: Samples are sent to a -30°C enthalpy difference laboratory for specialized testing of your product
-EVI DC Inverter Model: Verify the low-temperature heating attenuation rate and energy efficiency ratio.
-Pool heat pump: Simulate constant temperature conditions to verify the anti-corrosion performance of titanium tube heat exchangers.
-80°C high-temperature machine: Testing the high-voltage protection threshold and system stability.
Batch Production and Quality Inspection

1. Flexible Scheduling: Production of bulk orders commences after sample confirmation and signing. Mixed order production is supported, allowing trial orders with a minimum quantity of one container to be combined with main orders, effectively controlling costs.
Process Control:
- Key process traceability: The welding process complies with the IPC-610 standard, and the leak detection process employs a high-sensitivity refrigerant leak detector.
- Online Monitoring: Each DC frequency conversion drive board records voltage and current waveforms.
3 Full Inspection and Warehousing: Each unit has undergone:
- Air tightness test: Fill with high-pressure nitrogen, maintain pressure for 24 hours with zero leakage.
- Electrical safety testing: Comprehensive inspection of voltage withstand and grounding resistance.
- Operation Test: Power on the air-source/pool heat pump for 20 minutes, and record the temperature difference between inlet and outlet water, current, suction/exhaust pressure.
Logistics delivery

1.Export Preparation: Provide fumigated wooden pallets, design and produce shipping marks as per your requirements, and organize the complete set of inspection and customs clearance documents.
2.International Shipping: Assist in coordinating with freight forwarders for booking, arrange door-to-door ocean or air freight services, and provide real-time logistics tracking updates.
3. Documents with the shipment: The English versions of the "Factory Inspection Report," "Installation Manual," "Warranty Card," and relevant certification documents are provided with the container.
